WebVTT Protocol Guide

WebVTT Protocol Guide

步骤 1

WEBVTT

File Identifier

Every WebVTT file must start with WEBVTT as the first line of the file, and it must occupy a single line. This is the file format identifier, used to inform the parser that this is a WebVTT format subtitle file.

WebVTT files must use UTF-8 encoding.

步骤 2

00:00:01.000 --> 00:00:03.000
Hello, world!

Or with an identifier:

subtitle-001
00:00:01.000 --> 00:00:03.000
Hello, world!

Subtitle Cue

Each subtitle cue consists of the following parts:

  • Optional identifier: Used to reference the subtitle, cannot contain --> or newlines
  • Timeline: Format is start time --> end time
  • Subtitle text: The displayed subtitle content, can contain multiple lines

Cues are separated by blank lines

Time format:

  • HH:MM:SS.mmm (hours:minutes:seconds.milliseconds)
  • or MM:SS.mmm (minutes:seconds.milliseconds)

Minutes and seconds are required.

步骤 3

WEBVTT

NOTE
This is a comment.
Comments can be single line or multi-line.

NOTE
And there can be multiple comments.
Comments can also alternate with cues

Comments (NOTE)

NOTE: Comments, used to add author notes, will not be displayed on the screen.

Comment content can be single line or multi-line. A subtitle file can have multiple comments.

步骤 4

Example:

WEBVTT

00:00:32.500 --> 00:00:34.500
To grow up on these shores. To witness this water, every day

Original image.Figure 1: Subtitle without any modifications

WEBVTT

00:00:32.500 --> 00:00:34.500 size:30%
To grow up on these shores. To witness this water, every day

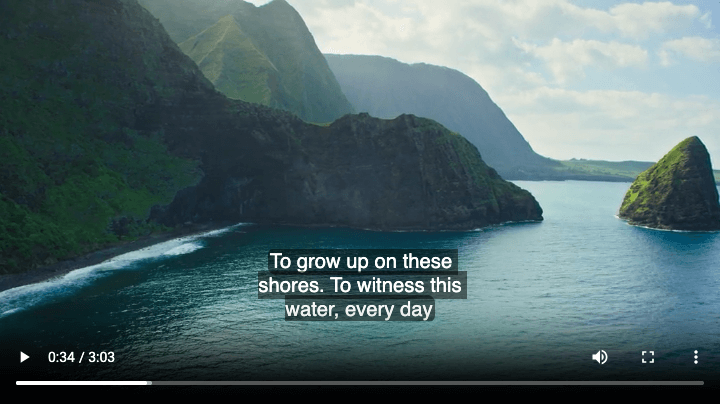

size equals 30% image.Figure 2: size:30% (default position:50%, align:center)

WEBVTT

00:00:32.500 --> 00:00:34.500 size:30% position:20%
To grow up on these shores. To witness this water, every day

size equals 30% position equals 20% image.Figure 3: size:30% position:20% (default align:center)

WEBVTT

00:00:32.500 --> 00:00:34.500 size:30% position:20% align:left
To grow up on these shores. To witness this water, every day

size equals 30% position equals 20% align left image.Figure 4: size:30% position:20% align:left

WEBVTT

00:00:32.500 --> 00:00:34.500 size:30% position:20% align:right
To grow up on these shores. To witness this water, every day

size equals 30% position equals 20% align right image.Figure 5: size:30% position:20% align:right

Timeline Settings

Optional settings can be added after the timeline, separated by spaces:

  • size: Width of the subtitle area, range 0-100%
    You can imagine the subtitle on the screen is located in a box (cue-box), size means the percentage of screen width this box occupies
  • position: Horizontal position, range 0-100%, default is centered (50%) The position of the subtitle in the horizontal direction, from the left side of the screen to the right side means 0%~100%, this property is related to align. The value of the align property indicates which edge of the subtitle box aligns with position.
  • align: Alignment method, options are start, center (default), end, left, right
    The start and end options respect the left-to-right order of the language. For right-to-left languages, such as Arabic and Hebrew, start means right side, end means left side

步骤 5

WEBVTT

STYLE
::cue {
  color: white;
  background-color: rgba(0, 0, 0, 0.8);
}
::cue(v[voice="John"]) {
  color: #FFD700;
  font-weight: bold;
}
::cue(.cn) {
  color: #00FF88;
}

Styles (STYLE)

The STYLE section is used to define CSS styles for subtitles and must be located after the header section and before the first subtitle cue.

Common CSS selectors:

  • ::cue: Select all subtitle text
  • ::cue(.class): Select text with a specific class
  • ::cue(v[voice]): Select specific voice tags
  • ::cue([lang="en-US"]): Select specified language
  • ::cue-region: Select all region subtitle text
  • ::cue-region(#id): Select region subtitle text with specified id

Supported CSS properties include color, font, background, text alignment, etc., but with limitations.

步骤 6

00:00:10.000 --> 00:00:12.000
<b>Bold text</b>

00:00:10.000 --> 00:00:12.000
<i>Italic text</i>

00:00:10.000 --> 00:00:12.000
<u>Underlined text</u>

Example:

WEBVTT

00:00:32.500 --> 00:00:34.500
To <b>grow up</b> on these <u>shores</u>. To witness this water, <i>every day</i>

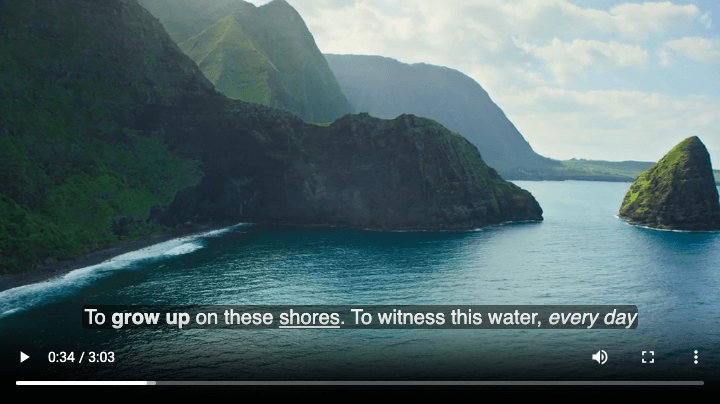

text style tag image.Text formatting tags

Text Formatting Tags

WebVTT supports the following text formatting tags:

  • <b>: Bold
  • <i>: Italic
  • <u>: Underline
  • <v>: Voice tag, used to identify speakers
  • <c>: Custom class name tag, can contain multiple class names (e.g., <c.red.bg_yellow>)

<v> and <c> are discussed separately in the sections below

步骤 7

Example:

WEBVTT

STYLE
::cue(v[voice="Alice"]) {
    color: cyan;
}
::cue(v[voice="Bob"]) {
    color: yellow
}

00:00:32.500 --> 00:00:34.500
<v Alice>To grow up on these shores.</v>
<v Bob>To witness this water, every day</v>

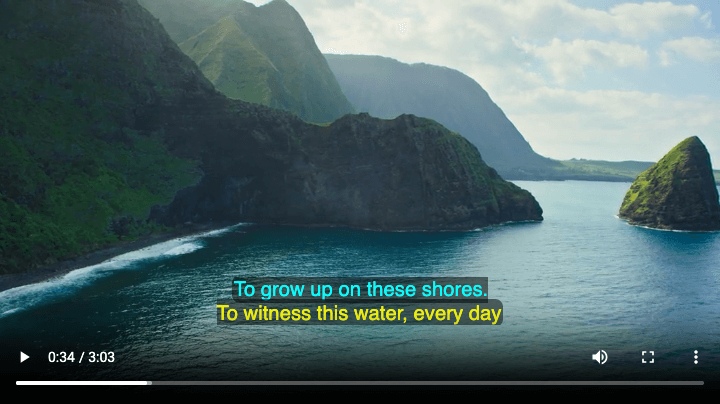

voice tag image.Voice tags

Voice Tag <v>

The <v> tag is used to identify speakers: In the example, the speakers are named Alice and Bob. The specified speakers will not be displayed in the subtitles, but are distinguished by styles, positions, and other means. Through CSS, you can use ::cue(v[voice="Alice"]) to set styles for specific speakers.

Note: There cannot be blank lines in the STYLE section.

步骤 8

00:00:20.000 --> 00:00:22.000
<c.highlight>Important information</c>

00:00:22.500 --> 00:00:24.000
<c.cn>Chinese translation</c>

00:00:24.500 --> 00:00:26.000
Normal text <c.sound>[Sound effect]</c>

Example:

WEBVTT

STYLE
::cue(c) {
    color:#4E71FF;
    background-color:#DDF4AA;
}
::cue(c.highlight) {
    font-size:30px;
    font-weight:800;
    color:yellow;
    background-color:green;
}

00:00:32.500 --> 00:00:34.500
<c>To grow up on these shores.</c>
<c.highlight>To witness this water, every day</c>

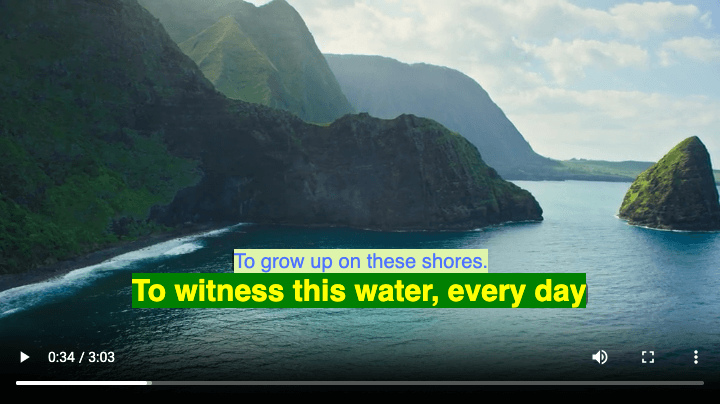

custom tag image.Text formatting tags

Custom Class Tag <c>

The <c> tag allows you to add custom class names to text fragments for CSS style control.

Syntax: <c.className>text</c>

Common use cases:

  • Multilingual subtitles (e.g., Chinese-English comparison)
  • Special effect markers (e.g., sound effects, background music)
  • Highlighting important information

The protocol also specifies styles like <c.red.bg_yellow>, requiring players to support a set of color styles, including subtitle colors (https://w3c.github.io/webvtt/#default-text-color) and background colors (https://w3c.github.io/webvtt/#default-text-background). When using these built-in styles, subtitle authors do not need to specify STYLE.

Note: Built-in subtitle colors and background colors are well supported by players like VLC, but the browser HTML video tag has almost no support.

步骤 9

WEBVTT

REGION
id:top
width:100%
lines:2
regionanchor:0%,0%
viewportanchor:0%,0%
scroll:up

REGION
id:bottom
width:100%
lines:3
regionanchor:0%,100%
viewportanchor:0%,100%

Example:

WEBVTT

STYLE
::cue-region(#top) {
  color: yellow;
}

REGION
id:top
viewportanchor:0%,20%

00:00:32.500 --> 00:00:34.500 region:top
To grow up on these shores. To witness this water, every day

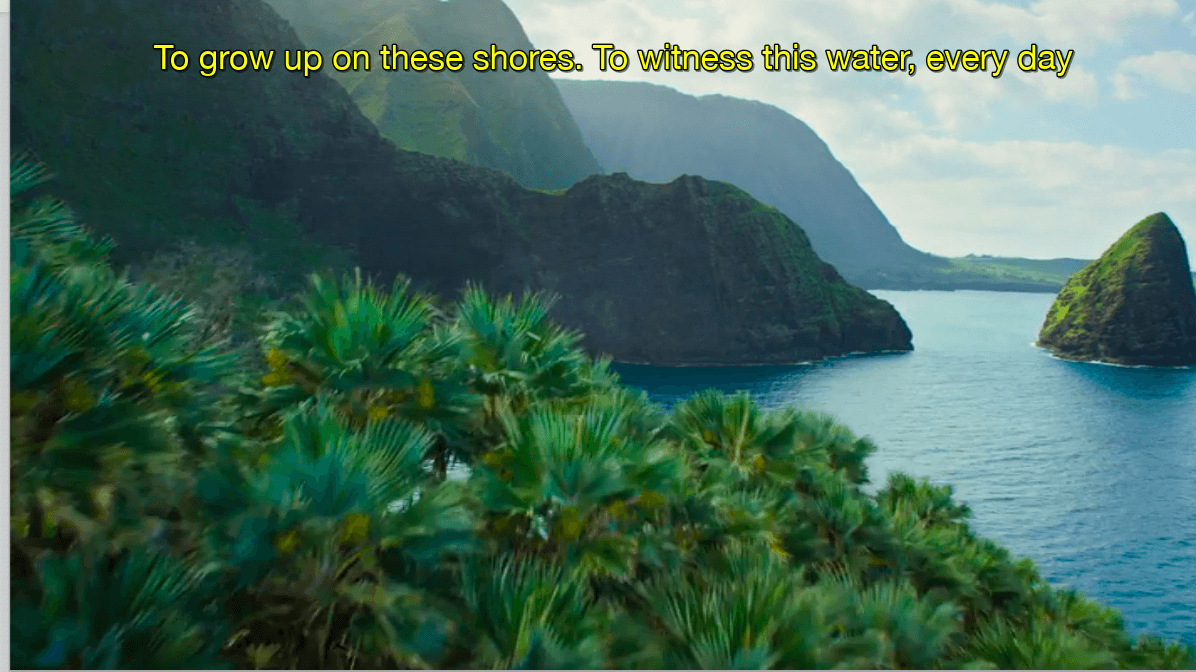

region anchor image.Region anchor (Screenshot from VLC player)

Region (REGION)

REGION is used to define subtitle display regions, allowing subtitles to be displayed at different positions on the screen. By using region:regionID in the timeline settings, you can specify which region the subtitle should be displayed in.

Main properties:

  • id: Region identifier, referenced in subtitle cues via region:id
  • width: Region width
  • lines: Maximum number of lines
  • regionanchor: Region anchor (e.g., 0%,0%)
  • viewportanchor: Viewport anchor (e.g., 0%,100%)
  • scroll: Scroll method (up means scroll up)

Note: Player applications support some properties, but browsers have almost no support

viewportanchor and regionanchor imageThe meaning of viewportanchor and regionanchor in regions. Image reference
